PMH company introduction PMH 公司简介

Automated modern production processes during grinding or turning set high demands on the clamping system. In most cases, individual solutions must be developed to fulfill the customer’s requirements. Therefore, the production of our clamping systems has been optimized for the flexible variation of our standard clamping chucks as well as for the creation of special versions and new developments. Immediately after the definition of your requirements we will start with project engineering.

磨削或车削过程中的自动化现代化生产工艺对夹紧系统提出了很高的要求。在大多数情况下，必须开发单独的解决方案以满足客户的需求。因此，我们的夹持系统的生产已针对标准夹持卡盘的灵活变化以及特殊版本的开发和新开发进行了优化。在确认您的需求之后，我们将立即开始工程设计。

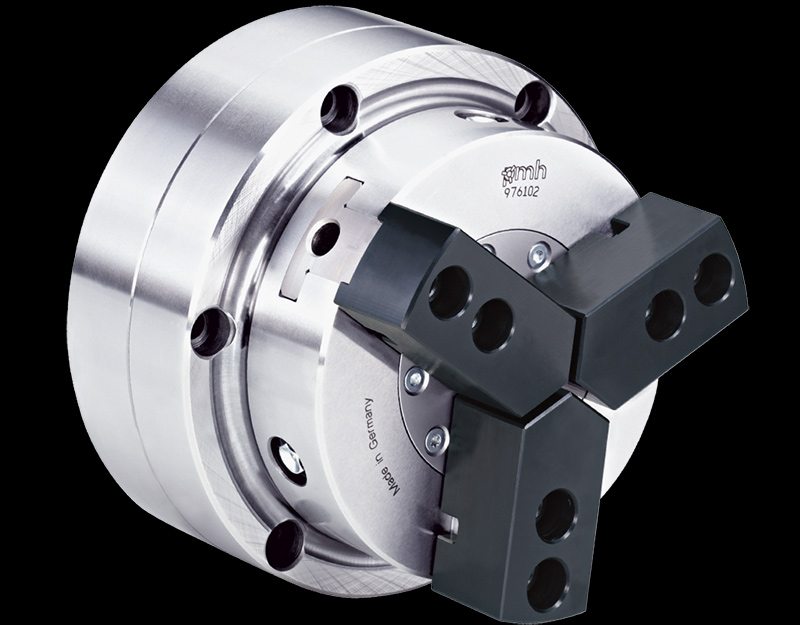

HIGH SPEED CLAMPING CHUCK 高速夹具卡盘



High speed clamping chucks are designed for applications with a speed range of up to 8000 rpm and a repetitive clamping accuracy of 0.002 mm. These chucks offer the ideal conditions for use on lathes for hard turning operations.



设计用于最高8000 rpm的速度范围和0.002 mm的重复夹紧精度。 这些卡盘为在车床上进行硬车削操作提供了理想的条件。

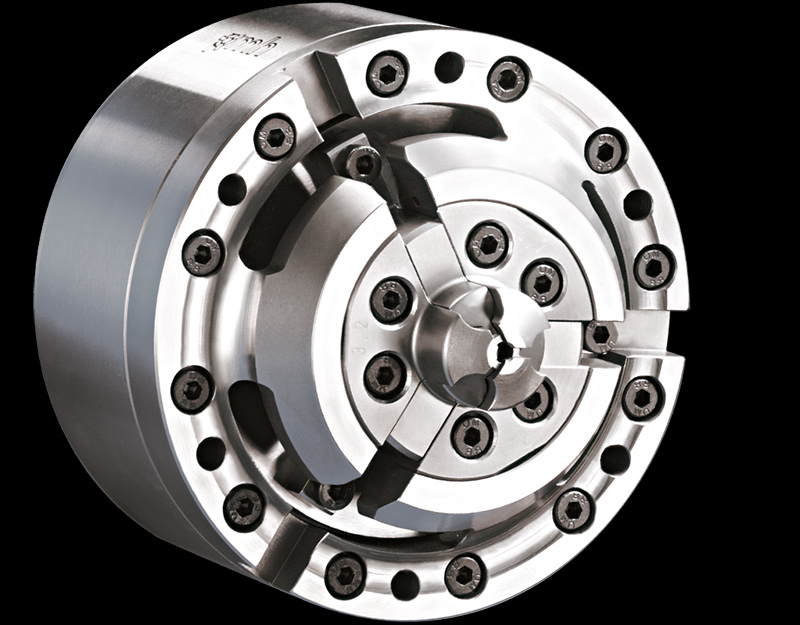

FRONT END OPERATED CHUCK 前端操作卡盘





Front end operated chucks are designed for high-precision grinding, turning and measuring operations since they feature a repetitive clamping accuracy of up to 1.5 µ. All components are made of high-alloy tool steel, are hardened and precisely ground thus guaranteeing reliable use and long-term performance of the pmh front end operated chucks. 5 different standard sizes ranging from ø 100 to ø 250 mm are available.



设计用于高精度磨削，车削和测量操作，因为它们具有高达1.5 µ的重复夹紧精度。 所有组件均由高合金工具钢制成，经过硬化处理和精确磨削，从而确保pmh前端操作卡盘的可靠使用和长期性能。 提供5种不同的标准尺寸，从ø100到ø250 mm。

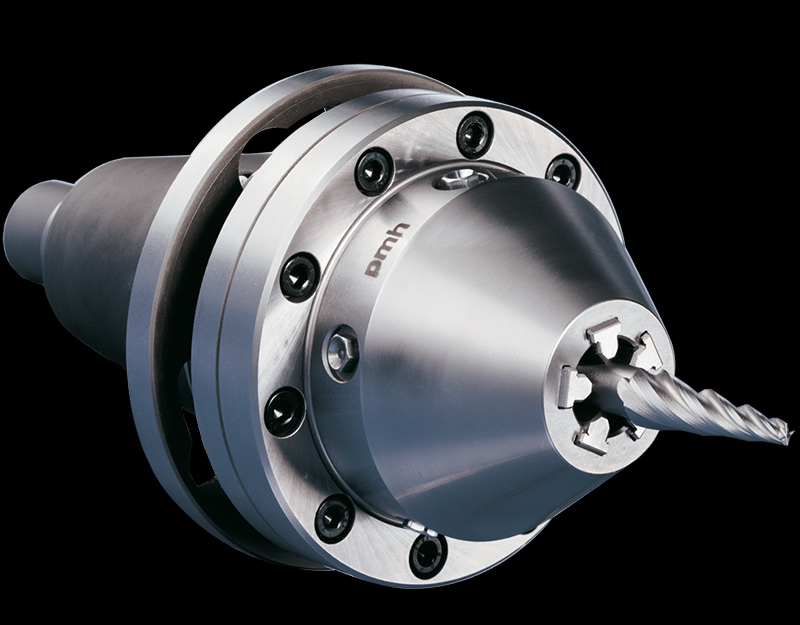

SEG CLAMPING CHUCKS  SEG夹具卡盘



SEG clamping chucks are designed for modern CNC tool grinding machines. The large clamping range of up to 15 mm referred to the diameter allow to achieve an enormous saving of time during production grinding and regrinding of tools. A clamping accuracy of at least 0.005 mm is achieved across the complete clamping range. The pmh SEG clamping chucks are particularly suited for use on machines with automatic loading and unloading.

专为现代CNC工具磨床设计的夹紧装置。 相对于直径而言，最大的夹持范围可达15 mm，可在工具的生产磨削和再磨削过程中节省大量时间。 在整个夹紧范围内，夹紧精度至少为0.005 mm。 pmh SEG夹紧卡盘特别适合在具有自动装卸功能的机器上使用。

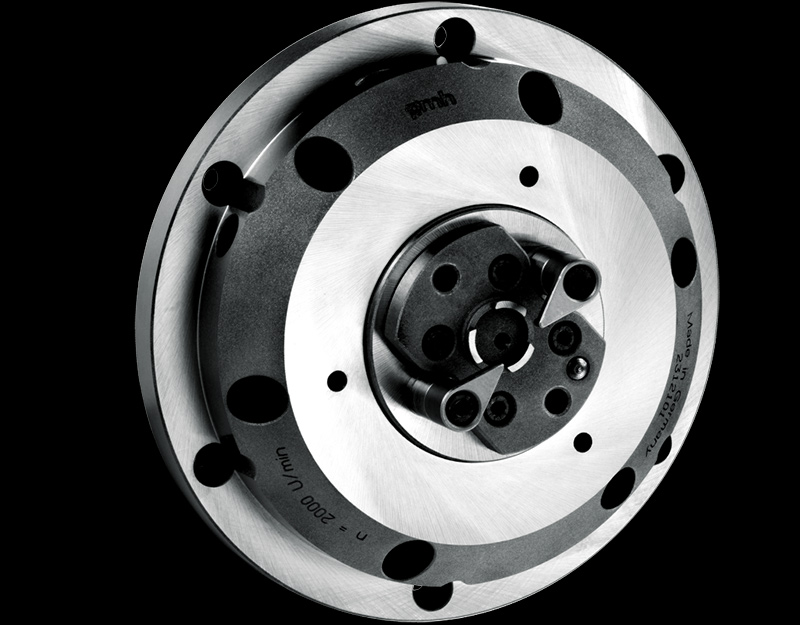

DIAPHRAGM CHUCKS 隔膜卡盘



The pmh diaphragm clamping system with a repetitive clamping accuracy of at least 1.5 µ and an adjustable clamping force sets new standards for the machining of high-precision components on grinding, turning and measuring machines. This clamping system can be used for a speed range of up to 6000 RPM. Its replaceable clamping jaws, lightweight and maintenance-free construction and easy mounting are further advantages. The extremely flexible pmh diaphragm clamping system is particularly suited for applications in combination with automatic loading devices.

pmh膜片夹紧系统的重复夹紧精度至少为1.5 µ，夹紧力可调，为在磨床，车床和测量机上加工高精度零件树立了新标准。该夹紧系统可用于高达6000 RPM的速度范围。 其可更换的夹爪，轻巧且免维护的结构以及易于安装的优点是进一步的优势。 极其灵活的pmh膜片夹紧系统特别适合与自动加载设备结合使用的应用。

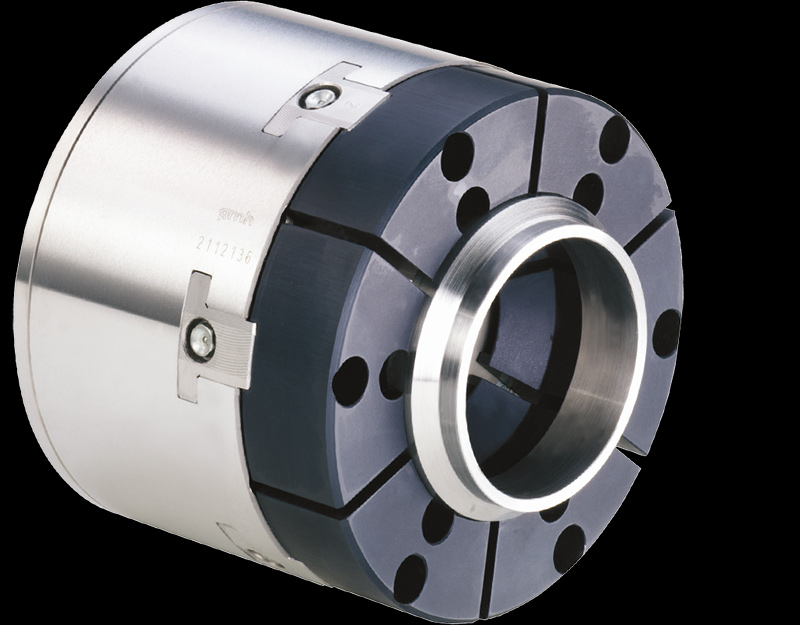

AXIAL CLAMPING CHUCK 轴向夹具卡盘



Alongside the proverbial pmh precision, the newly developed pmh axial clamping chuck excels above all thanks to a compact design and a quick exchange of parts subject to wear during ongoing production. So that this case also occurs as late as possible, the axial clamping chuck has been made of particularly wear-proof steels. For individual adaptation to specific workpieces, the sound sensorics, the dressing wheel (grinding) and the balancing weights (eccentric processing) can be added. A coolant duct has also been provided. As a further option, a body of hard-coated aluminium is also possible.

除了众所周知的pmh精度外，新开发的pmh轴向夹紧卡盘尤其出色，这归功于其紧凑的设计和在生产过程中易于磨损的零件的快速更换。为了使这种情况也尽可能早地发生，轴向夹紧卡盘由特别耐磨的钢制成。 为了单独适应特定的工件，可以添加声音传感器，修整轮（研磨）和平衡重（偏心加工），还提供了冷却剂管道。 作为另一选择，也可以使用硬质涂层的铝制主体。

HOLD-DOWN CLAMP 压紧钳



In supplementation to the range of highly precise chucks, the new hold-down clamp has been developed especially for parts which require a large clamping stroke, because they have to be clamped over a collar. The special clamping method is realized by means of diagonal slides which pull the part by radial and axial movements concentrically to the spindle axis against a positive stop. This ensures an extremely precise keeping of length tolerances.

作为高精度卡盘的补充，新的压紧夹具专为要求大夹紧行程的零件而开发，因为它们必须被夹紧在轴环上。 特殊的夹紧方法是通过对角滑动件实现的，该对角滑动件通过径向和轴向运动（与主轴轴线同心地靠着正止动件）来拉动零件。这样可以确保极其精确地保持长度公差。

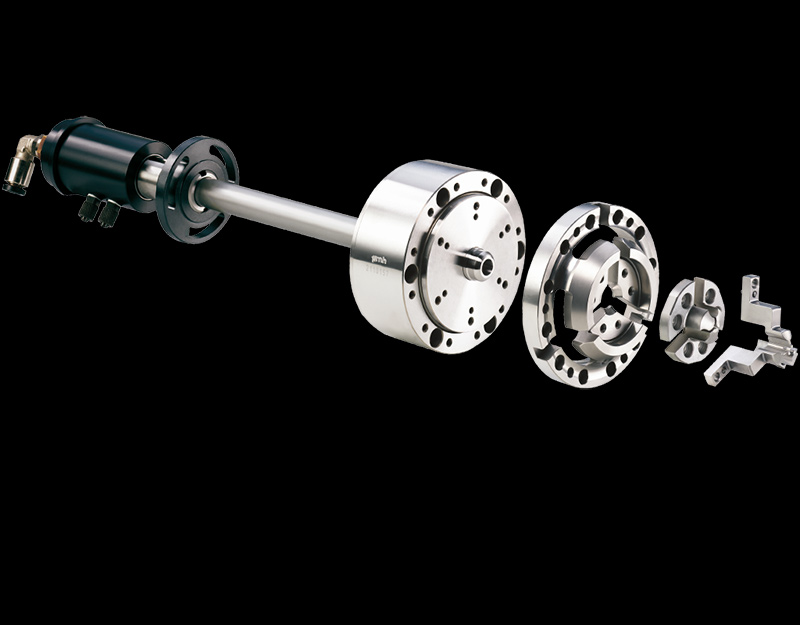

AIR SUPPLY TUBE 供气管



The PHM AIR SUPPLY TUBE is equipped with a high-precision rotary distributor mounted on rolling bearings and a diaphragm seal. A separate channel is provided for each of the functions “Open chuck” and “Close chuck”. A third channel is provided for coolant supply, blast air or pneumatic discharge. Important: with polluted air a particle filter must be installed.

PHM空气供应管配有安装在滚动轴承和膜片密封件上的高精度旋转分配器。 为“打开卡盘”和“关闭卡盘”中的每个功能提供了一个单独的通道。提供第三通道用于冷却剂供应，鼓风或气动排放。重要提示：必须在污染空气的情况下安装颗粒过滤器。

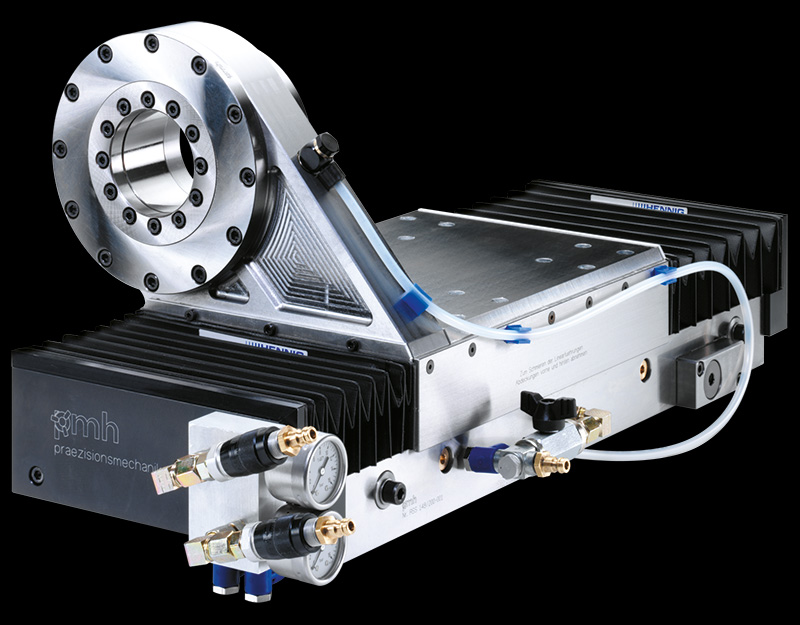

Rotational steady rest 稳定旋转系统



What’s revolutionary about the newly developed ROTATIONAL STEADY REST from pmh is the possibility of high precision internal and external machining in one working process (one clamping). A rotating clamping ring centers and clamps workpieces in the axis of a machine’s driven work headstock with extreme precision. In this way it’s possible to manufacture extra-long workpieces with the highest precision in regard to roundness, eccentricity, concentricity and axis parallelism. An extensive rough-grind of the back rest seat or center as well as drive or alignment mechanisms are no longer required. Fast retrofit, flexibility (e.g. as with the tailstock for the center rest) and the preset automation are pmh standards.

pmh最新开发的ROTATIONAL STEADY REST的革命性之处在于可以在一个工作过程（一次夹紧）中进行高精度的内部和外部加工。 旋转的夹紧环以极高的精度将工件居中并沿机床从动主轴箱的轴线夹紧。 这样就圆度，偏心度，同心度和轴平行度而言，可以以最高精度制造超长工件。 不再需要靠背座椅或中央的粗磨以及驱动或对准机构。 快速的翻新，灵活性（例如中央支架的尾座）和预设的自动化是pmh标准。
